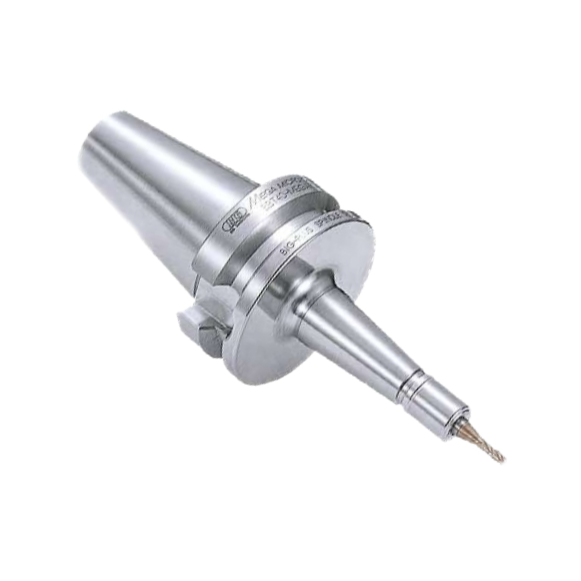

日本BIG微小径筒夹刀柄BBT30-MEGA3S-45T
发布时间：2024-03-31
避免干涉的纤细型高速刀柄 夹持范围：φ0.45~φ8.05mm
用于高速、高精度的小型模具加工，可夹持小径钻头，小径立铣刀，还可选择与供油方法相
符的内冷螺母。搭配中心内冷刀具可实现刀尖出水和端面出水。
|
BIG-PLIS BBT基础柄型号 |
夹持直径 φd |
φD | φD₁ | L | L1 | H₁ | H₂ | G | 对应夹套 |
质量 (kg) |
| BBT30-MEGA3S-45T |
0.45 ～ 3.25 |
10 |
11.5 | 45 | 20 |
22 |
38 |
M4 P0.7 |
NBC3S-□ |
0.39 |
| BBT30-MEGA3S-75T | 16 | 75 | 48 | 0.41 | ||||||
| BBT30-MEGA3S-90T | 18.5 | 90 | 63 | 0.45 | ||||||
| BBT30-MEGA3S-105T | 21 | 105 | 78 | 0.48 | ||||||
| BBT30-MEGA4S-60T |
0.45～4.05 |
12 |
15 | 60 | 33 |
26.5 |
47 |
M5 P0.8 |
NBC4S-□ |
0.42 |
| BBT30-MEGA4S-75T | 17.5 | 75 | 48 | 0.44 | ||||||
| BBT30-MEGA4S-90T | 20 | 90 | 63 | 0.47 | ||||||
| BBT30-MEGA4S-105T | 23 | 105 | 78 | 0.52 | ||||||
| BBT30-MEGA4S-120T | 25.5 | 120 | 93 | 0.57 | ||||||
| BBT30-MEGA6S-60T |
0.45～6.05 |
14 |
16.5 | 60 | 33 |
28.5 |
49 |
M7 P0.75 |
NBC6S-□ |
0.42 |
| BBT30-MEGA6S-75T | 19 | 75 | 48 | 0.44 | ||||||
| BBT30-MEGA6S-90T | 22 | 90 | 63 | 0.48 | ||||||
| BBT30-MEGA6S-105T | 24.5 | 105 | 78 | 0.51 | ||||||
| BBT30-MEGA6S-120T | 27 | 120 | 93 | 0.59 | ||||||
| BBT30-MEGA8S-75T | 2.95 ～8.05 | 18 | 23 | 75 | 48 | 31 | 50.5 | M9 P0.75 | NBC8S-□ | 0.48 |
| BBT30-MEGA8S-105T | 28 | 105 | 78 | 0.59 | ||||||
| BBT40-MEGA3S-60T | 0.45 ～ 3.25 | 10 | 12.5 | 60 | 28 | 22 | 38 | M4 P0.7 | NBC3S-□ | 1.0 |
| BBT40-MEGA3S-90T | 17.5 | 90 | 58 | 1.1 | ||||||
| BBT40-MEGA3S-120T | 23 | 120 | 88 | 1.2 | ||||||
| BBT40-MEGA4S-60T |
0.45 ～4.05 |
12 |
14 | 60 | 28 |
26.5 |
47 |
M5 P0.8 |
NBC4S-□ |
1.0 |
| BBT40-MEGA4S-75T | 16.5 | 75 | 43 | 1.1 | ||||||
| BBT40-MEGA4S-90T | 19.5 | 90 | 58 | 1.1 | ||||||
| BBT40-MEGA4S-105T | 22 | 105 | 73 | 1.1 | ||||||
| BBT40-MEGA4S-120T | 24.5 | 120 | 88 | 1.2 | ||||||
| BBT40-MEGA4S-135T | 27 | 135 | 103 | 1.2 | ||||||
| BBT40-MEGA6S-60T |
0.45～605 |
14 |
15.5 | 60 | 28 |
28.5 |
49 |
M7 P0.75 |
NBC6S-□ |
1.1 |
| BBT40-MEGA6S-75T | 18 | 75 | 43 | 1.1 | ||||||
| BBT40-MEGA6S-90T | 21 | 90 | 58 | 1.1 | ||||||
| BBT40-MEGA6S-1057 | 23.5 | 105 | 73 | 1.1 | ||||||
| BBT40-MEGA6S-120T | 26 | 120 | 88 | 1.2 | ||||||
| BBT40-MEGA6S-135T | 29 | 135 | 103 | 1.3 | ||||||
| BBT40-MEGA8S-90T | 2.95～8.05 | 18 | 24.5 | 90 | 58 | 31 | 50.5 | M9 P0.75 | NBC8S-□ | 1.2 |
| BBT40-MEGA8S-120T | 30 | 120 | 88 | 1.2 |
微小径夹套
自创的锥度及导向设计，虽然外形精小，体积小但夹持力强，可实现精密小径加工
夹套口1μm以内的跳动精度，4倍直径前3um以内的跳动精度
| MEGA3S | |
| 夹套型号 | 夹持范围φd |
| NBC3S-0.5AA | 0.45 ～0.55 |
| NBC3S-0.6AA | 0.55 ～ 0.65 |
| NBC3S-0.7AA | 0.65 ～0.75 |
| NBC3S-0.8AA | 0.75 ～0.85 |
| NBC3S-0.9AA | 0.85 ～ 0.95 |
| NBC3S-1.0AA | 0.95 ～1.05 |
| NBC3S-1.1AA | 1.05 ～ 1.15 |
| NBC3S-1.2AA | 1.15 ～ 1.25 |
| NBC3S-1.3AA | 1.25 ～ 1.35 |
| NBC3S-1.4AA | 1.35 ～ 1.45 |
| NBC3S-1.5AA | 1.45 ～1.55 |
| NBC3S-1.6AA | 1.55 ～1.65 |
| NBC3S-1.7AA | 1.65 ～1.75 |
| NBC3S-1.8AA | 1.75 ～ 1.85 |
| NBC3S-1.9AA | 1.85 ～ 1.95 |
| NBC3S-2.0AA | 1.95 ～ 2.05 |
| NBC3S-2.1AA | 2.05 ～ 2.15 |
| NBC3S-2.2AA | 2.15 ～2.25 |
| NBC3S-2.3AA | 2.25 ～ 2.35 |
| NBC3S-2.4AA | 2.35 ～ 2.45 |
| NBC3S-2.5AA | 2.45 ～ 2.55 |
| NBC3S-2.6AA | 2.55 ～ 2.65 |
| NBC3S-2.7AA | 2.65 ～ 2.75 |
| NBC3S-2.8AA | 2.75～ 2.85 |
| NBC3S-2.9AA | 2.85 ～ 2.95 |
| NBC3S-3.0AA | 2.95 ～ 3.05 |
| NBC3S-3.1AA | 3.15 |
| NBC3S-3.175AA | 3.125～ 3.225 |
| NBC3S-3.2AA | 3.15 ～ 3.25 |
美夹螺母(微小径刀柄用)
●无扳手槽设计的高精度螺母可抑制振动，防止冷却液飞溅。
●减少高速转动时的空气阻力，消除噪音
| 型 号 | φD | φD₁ | L | L1 | 对应本体 |
| MGN3S | 10 | 10.3 | 13.0 | 11.0 | MEGA3S |
| MGN4S | 12 | 12.3 | 14.5 | 12.0 | MEGA4S |
| MGN6S | 14 | 14.3 | 17.0 | 14.5 | MEGA6S |
| MGN8S | 18 | 18.3 | 18.5 | 15.5 | MEGA8S |
美夹扭矩扳手
●带扭矩限制器的美夹扳手。防止过大力造成螺帽及刀体损坏。
| 型 号 |
 手 径扳 内 |
对应本体 | |||
| 美夹微型刀柄 |
美夹新倍比高精度 弹簧夹头 |
美夹E型刀柄 | 美夹同步攻丝刀柄 | ||
| MGR10TL | 10 | MEGA3S | |||
| MGR12TL | 12 | MEGA4S | |||
| MGR12TLS ※ | |||||
| MGR14TL | 14 | MEGA6S | |||
| MGR14TLS ※ | |||||
| MGR16TTL | 16 | MGT6 | |||
| MGR18TL | 18 | MEGA8S | |||
| MGR20TL | 20 | MEGA 6N | |||
| MGR20TLS ※ | |||||
| MGR2OTTL | MGT12 | ||||
| MGR25TL | 25 | MEGA 8N | MEGA 6E | ||
| MGR25TLS ※ | |||||
| MGR30TL | 30 | MEGA10N | MEGA 8E | ||
| MGR30TLS ※ | |||||
| MGR30TTL | MGT20 | ||||
| MGR35TL | 35 | MEGA13N | MEGA10E | ||
| MGR42TL | 42 | MEGA16N | MEGA13E | ||
| MGR46TL | 46 | MEGA20N | |||
| MGR60TL | 60 | MEGA25N | |||
